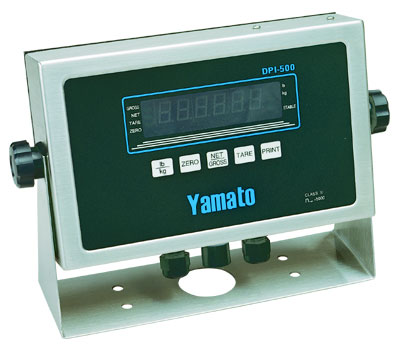

DPI-500 Washdown Digital Indicator

The DPI-500 is a tough, versatile, stainless steel, washdown indicator that can be used to drive up to eight 350 ohm load cells. It is NTEP certified legal for trade, has a large easy to read LED display, has full duplex RS-232 serial communications and can be powered by an AC adaptor or battery pack. An excellent indicator for a truck, floor or mechanical scale! With the optional battery pack, the DPI-500 is NEMA-4X washable, making it perfect for use in fish, poultry and meat processing or in any other wet, messy environment.

• Stainless Steel Construction

• Bright, LED Display with Annunciators

• NEMA 4X Washdown with Optional Battery Pack

• Full Duplex RS-232 Serial Communications

• Legal for Trade at 5000 Divisions

• Push Button Tare

• Initial, Automatic and Semi-automatic Zero Setting Mechanisms

Options

• Rechargable Battery Pack



Model	DPI-500
Accuracy Class	Class III/III L, 5000 divisions maximum
Certificate of Conformance #	96-163
A/D Converter	Dual slope
Display	LED: 6 digits plus annunciators Character size: 0.6" x 0.4"
Excitation Voltage	10 VDC
Internal Counts	260,000
I/O	Full duplex RS-232
Power	12 VDC
NEMA Type	4X, washdown
Operating Temperatures	14o F ~ 104o F (-10o C ~ 40o C)
Shipping Weight	6 lb
